- General Information
- Manufacturer
- Advantech Co., Ltd
- Manufacturer Website Address
- http://www.advantech.com
- Brand Name
- Advantech
- Product Type
- Digital Signage Display
Advantech EPD-660 and EPD-662 ePaper solutions support 2.4GHz RF wireless protocols integrated within a 13.3" display solution with ARM Cortex-M4 processor. EPD-660 and EPD-662 support optimized power consumption and device management, delivering long battery lifetimes and a 2.4GHz Wi-Fi solution adaptable to diverse applications. These solutions offer multiple buttons and indicators for application control, and are integrated with RESTful APIs for DeviceOn/ePaper. They also support system integrator, yielding an effective, powerful solution.
- Technical Information
- Ingress Protection (IP) Rating
- IP54
- Panel Technology
- ePaper
- Processor & Chipset
- Processor Manufacturer
- ARM
- Processor Type
- Cortex M4
- Display & Graphics
- Number of Screens
- 1
- Viewable Screen Size
- 13.30"
- Screen Size Class
- 13"
- Display Screen Type
- LCD
- Display Resolution
- 1600 x 1200
- Video
- Color Depth
- 16-bit
- Network & Communication
- Wireless LAN
- Yes
- Bluetooth
- Yes
- Power Description
- Input Voltage
- 5 V DC
- Environmental Conditions
- Minimum Operating Temperature
- 32°F (0°C)
- Maximum Operating Temperature
- 122°F (50°C)
- Minimum Storage Temperature
- 14°F (-10°C)
- Maximum Storage Temperature
- 140°F (60°C)
- Physical Characteristics
- Height
- 9.3"
- Width
- 12.9"
- Depth
- 0.9"
- Weight (Approximate)
- 1.98 lb
- Housing Material
- Plastic
- Miscellaneous
- Package Contents

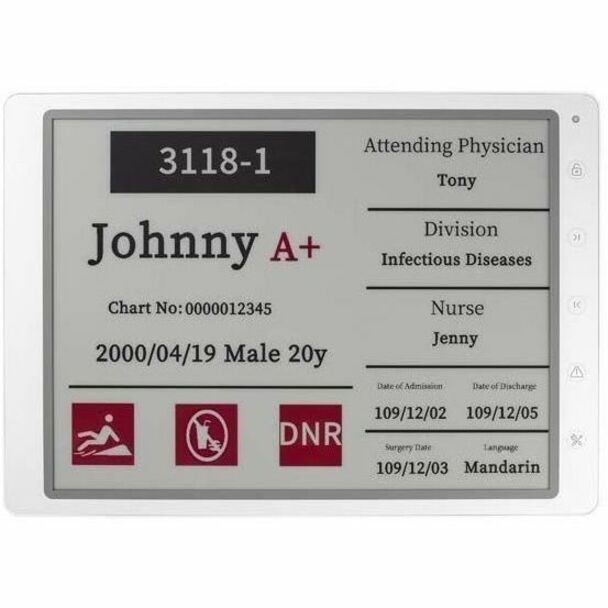

- 13.3" ePaper Wi-Fi Display Solution
- Type-C connector cable 100 cm (3.2 ft)
