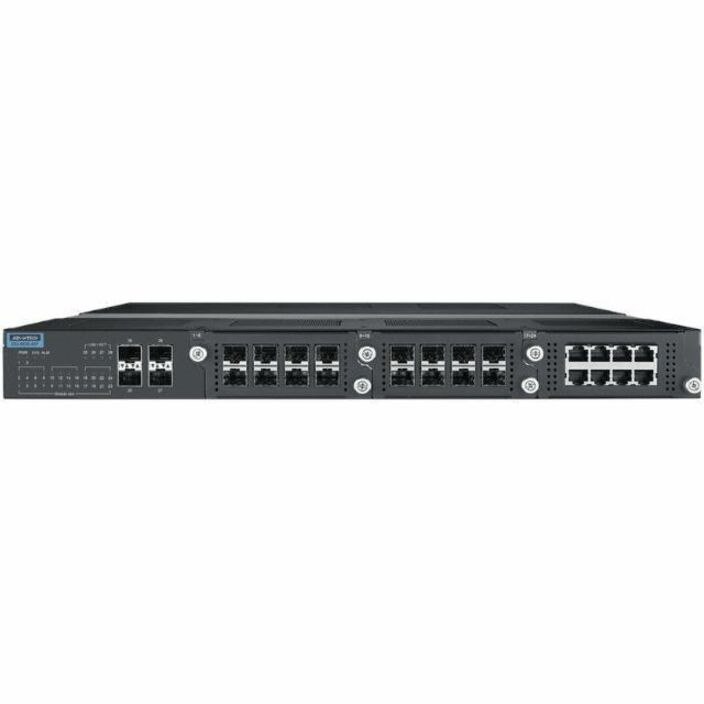

EKI-8528 series is a standard 19" rackmount Layer 3 and 2 modular managed switch which provides up to 24 Gigabit ports and 4x10Gigabit uplink solution, it is designed for medium and large Industrial networking environment, as a distribution level L3 switch, it supports RIPv1/v2, OSPFv3, VRRP routing protocols, PIM multiple routing feature and provides 4.5K routing table size for data exchange among multiple network nodes. Users can choose different Ethernet modules (RJ45 or SFP) and Power modules(24-48VDC or 110/220VAC) for bringing high flexibility to fulfil various kinds of industrial scenario, such as power stations and trackside signaling which are connecting the wide area of networking devices.
- General Information
- Manufacturer
- Advantech Co., Ltd
- Manufacturer Website Address
- http://www.advantech.com
- Brand Name
- Advantech
- Product Series
- EKI-8528
- Product Type
- Ethernet Switch
- Technical Information
- Features
- Hot-swappable
- IP30
- Strict Priority Queuing (SPQ)
- Broadcast Storm Control
- DHCP Relay
- Support Dual Image
- DHCP Snooping
- Access Control List
- Interfaces/Ports
- Modular
- Yes
- Network (RJ-45)
- Yes
- Port/Expansion Slot Details
- 4 x 1/10 Gigabit Ethernet SFP+ Expansion Slot

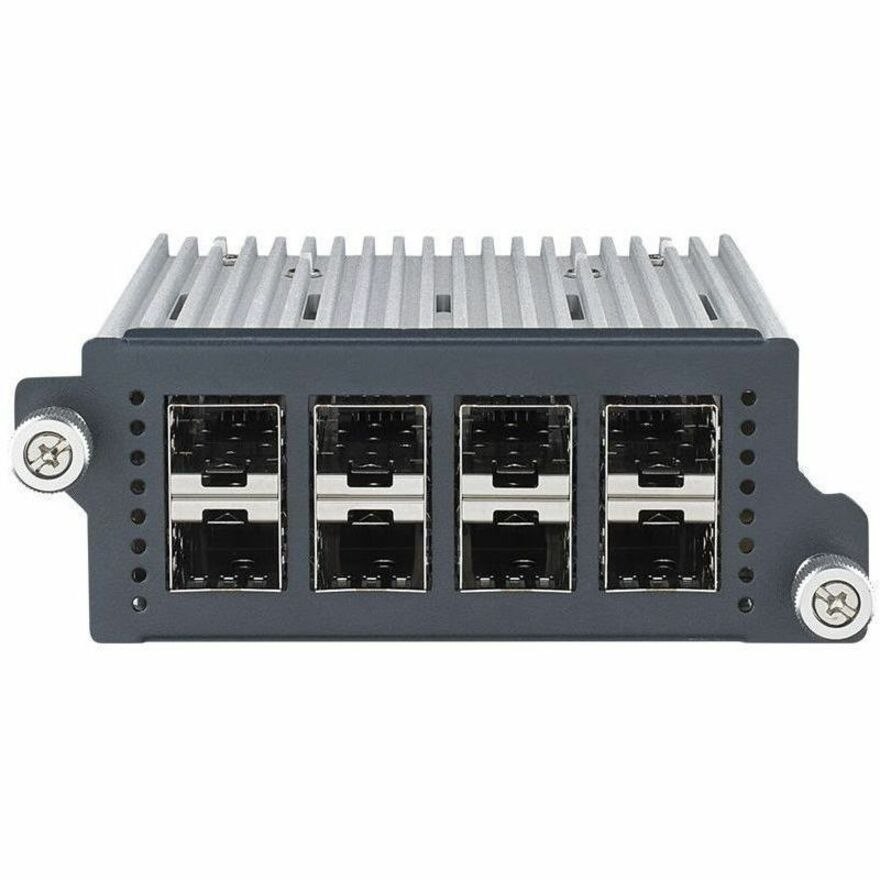

- 16 x Gigabit Ethernet SFP Expansion Slot
- Media & Performance
- Media Type Supported
- Twisted Pair
- Optical Fiber
- Ethernet Technology
- Gigabit Ethernet
- 10 Gigabit Ethernet
- Network Technology
- 100Base-FX
- 1000Base-TX
- 1000Base-SX/LX
- 1000Base-LHX
- 1000Base-ZX
- 1000Base-X
- 10GBase-X
- Maximum Data Transfer Rate
- 1.25 GB/s
- I/O Expansions
- Total Number of Expansion Slots
- 20
- Expansion Slot Type
- SFP+
- SFP
- Number of SFP Slots
- 16
- Number of SFP+ Slots
- 4
- Network & Communication
- Layer Supported
- 2
- Networking Standards
- IEEE 802.3
- IEEE 802.3u
- IEEE 802.3ab
- IEEE 802.3z
- IEEE 802.3ae
- IEEE 802.3x
- IEEE 802.1D
- IEEE 802.1w
- IEEE 802.1s
- IEEE 802.1p
- IEEE 802.1Q
- IEEE 802.1x
- IEEE 802.3ad
- IEEE 802.1v
- IEEE 802.1as
- IEEE 802.1Qbu
- IEEE 802.1ad
- IEEE 802.1ag
- IEEE 802.3ah
- IEEE 802.1Qbv
- IEEE 802.1Qci
- IEEE 802.1CB
- Management & Protocols
- Manageable
- Yes
- Power Description
- Input Voltage
- 120 V AC
- 230 V AC
- 24 V DC
- 48 V DC
- Power Source
- Power Supply
- AC/DC
- Redundant Power Supply Supported
- Yes
- Power Consumption
- 75 W
- Plug/Connector Type
- Terminal Block
- Physical Characteristics
- Product Material
- Metal
- Die-cast
- Compatible Rack Unit
- 1U
- Form Factor
- Rack-mountable
- Enclosure
- Height
- 1.7"
- Width
- 17.2"
- Depth
- 14.3"
- Weight (Approximate)
- 12.13 lb
- Miscellaneous
- Application/Usage
- Network
- Industrial
- Security
