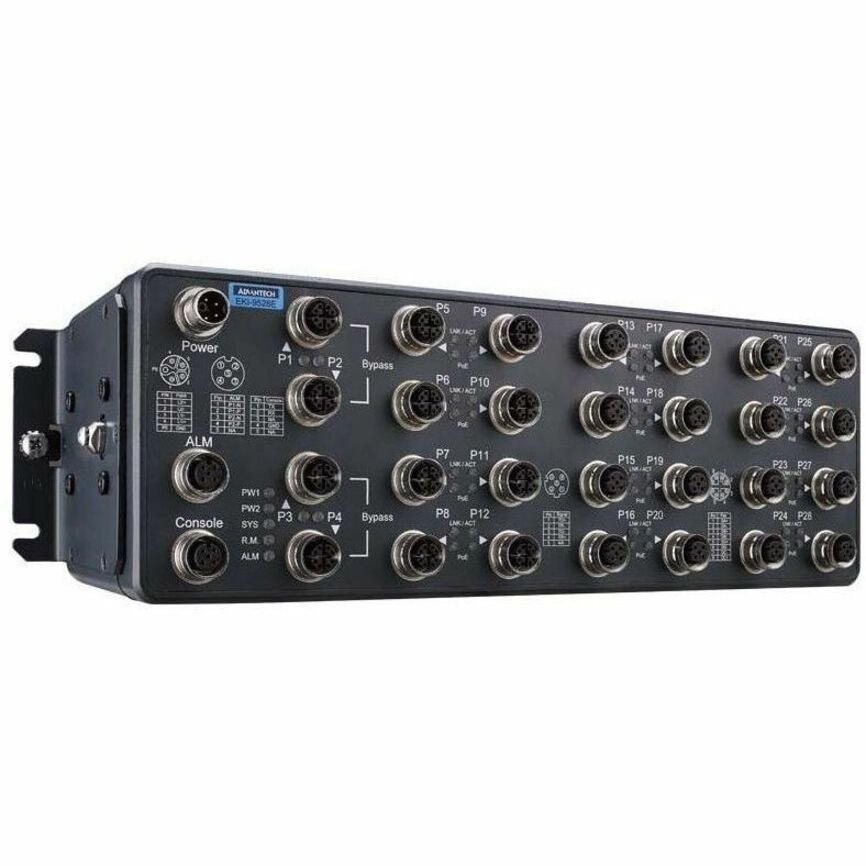

Advantech's EKI-9528 series Ethernet switch delivers a ruggedized design with high EMC performance to rolling stock, wayside control, and other railroad applications. This solution leverages M12 connectors for Ethernet, console, relay, and power-input - ensuring excellent connectivity and endurance in harsh environments. EKI-9528 accommodates 12 different users' options. It provides 28 x ports Full Giga Ethernet or 16 x ports Fast Ethernet + 12 Giga (with 4 x Relay Bypass ports) with IEEE802.3af/at PoE function (PoE model only). PoE models deliver 150W of power to cameras, IP-phones, wireless access points, and other devices. In addition, Advantech's EKI-9528 series features an IP54 certified ruggedized housing and ample pitch connectors that connect/disconnect cables easily. This solution accommodates deployment in compact spaces and delivers mass Ethernet connection.
- General Information
- Manufacturer
- Advantech Co., Ltd
- Manufacturer Website Address
- http://www.advantech.com
- Brand Name
- Advantech
- Product Series
- EKI-9528
- Product Type
- Ethernet Switch
- Technical Information
- Features
- Broadcast Storm Control
- DHCP Snooping
- Access Control List
- Remote Monitoring (RMON)
- Support Dual Image
- IP54
- Interfaces/Ports
- Port/Expansion Slot Details
- 28 x M12 8Pin X-Coded 10/100/1000BASE-T Gigabit Ethernet Network Port
- Number of M12 Connectors
- 28
- Media & Performance
- Ethernet Technology
- Gigabit Ethernet
- Network Technology
- 10/100/1000Base-T
- Maximum Data Transfer Rate
- 128 MB/s
- Network & Communication
- Layer Supported
- 2
- Networking Standards
- IEEE 802.1Q
- IEEE 802.1ad
- IEEE 802.1D
- IEEE 802.1s
- IEEE 802.1w
- IEEE 802.1p
- IEEE 802.1x
- Management & Protocols
- Manageable
- Yes
- Power Description
- Input Voltage
- 24 V DC
- 110 V DC
- 16.8 V DC
- 137.5 V DC
- 28 V DC
- 36 V DC
- 48 V DC
- 72 V DC
- 96 V DC
- Power Source
- DC
- Power Consumption
- 25 W
- Physical Characteristics
- Product Material
- Die-cast Aluminum
- Die-cast Zinc
- Form Factor
- Wall Mountable
- Enclosure
- Height
- 4.1"
- Width
- 11.8"
- Depth
- 4.1"
- Weight (Approximate)
- 14.11 lb
- Miscellaneous
- Application/Usage
- Network
- Industrial
- Camera
- Wireless Access Point
- IP Phone
- Security
