- General Information
- Manufacturer
- Advantech Co., Ltd
- Manufacturer Website Address
- http://www.advantech.com
- Brand Name
- Advantech
- Product Series
- EKI
- Packaged Quantity
- 1 Pack
- Product Type
- PoE Extender

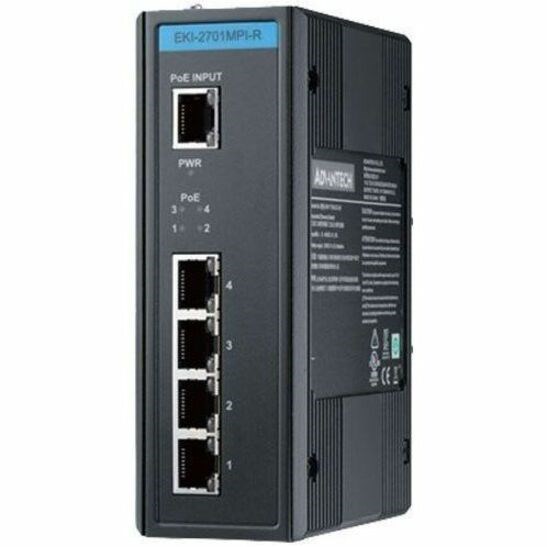

The EKI-2701MPI-R with high power PoE extender is designed to extend the connection easily without redeploying cables and power up to 30 watts with each PD device. It enables connections of Ethernet equipment to extend the distance of network communications. The EKI-2701MPI-R expands power and data, allowing PD device to be powered via an external PoE extender as if it had a local power supply.
- Technical Information
- Protection Type
- Power Reverse
- Power Description
- Input Voltage
- 50 V DC
- 57 V DC
- Maximum Output Power
- 60 W
- Interfaces/Ports
- Input Ports
- 1 x RJ-45
- Output Ports
- 4 x RJ-45
- Physical Characteristics
- Form Factor
- Din Rail
- Height
- 5.5"
- Width
- 1.9"
- Depth
- 3.7"
- Weight (Approximate)
- 7.05 oz
- Miscellaneous
- Certifications & Standards
- IP40
- IEEE 802.3af
- IEEE 802.3
- IEEE 802.3u
- IEEE 802.3x
- IEEE 802.3at
- IEEE 802.3ab
- CE
- FCC
- EN 61000-4-2
- EN 61000-4-3
- EN 61000-4-4
- EN 61000-4-5
- EN 61000-4-6
- EN 61000-4-8
- IEC 60068-2-27
- IEC 60068-2-32
- IEC 60068-2-6
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
- Waste Electrical and Electronic Equipment Directive (WEEE)
