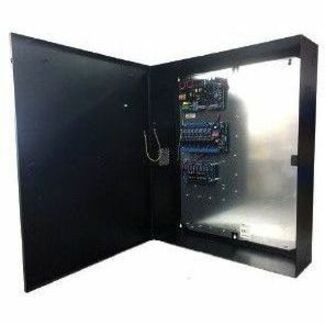

Altronix T2AGK78 kit consists of Trove2 enclosure, TAG2 AMAG/Altronix backplane with one (1) 24VDC @ 6A power supply/charger, one (1) 8-output fused access power controller, one (1) voltage regulator and one (1) 8-output fused dual input power distribution module. This kit also accommodate up to two (2) AMAG M4000 modules for up to eight (8) doors in a single enclosure. Trove simplifies board layout and wire management, reduces installation time and labor costs.
- General Information
- Manufacturer
- Altronix Corporation
- Manufacturer Website Address
- http://www.altronix.com
- Brand Name
- Altronix
- Product Type
- Access/Power Integration Kit
- Warranty
- Limited Warranty
- Lifetime
- Power Description
- Input Voltage
- 24 V DC
- 115 V AC
- 12 V DC
- Physical Characteristics
- Dimensions
21.5"Wx27.25"Hx6.5"D
- Weight (Approximate)
40.1 Lbs.(18.2 kg).
- Miscellaneous
- Package Contents
- Trove2 1 x Access and Power Integration Enclosure, Requires compatible Trove2 Series Backplane
- TAG2 1x Trove2 Backplane for Altronix/AMAG
- AL1024ULXB2 1 x Power Supply Charger, Single Fused Output, 24VDC @ 10A, 115VAC, Board
- ACM8 1 x Access Power Controller, 8 Fused Relay Outputs, FAI, Board
- VR6 1 x Voltage Regulator. 24VDC input into 5VDC or 12VDC output
- PDS8 1 x Dual Input Power Distribution Module, 8 Fused Outputs
- Compatibility
- AMAG Symmetry M4000 Database Door Controller
- Environmentally Friendly
- Yes
