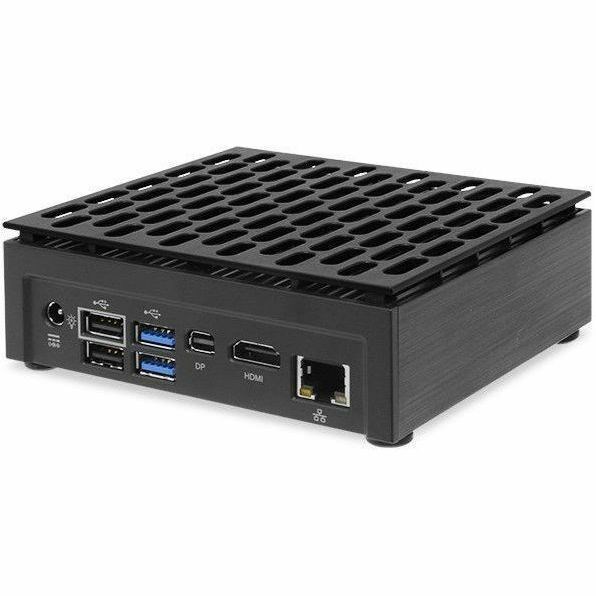

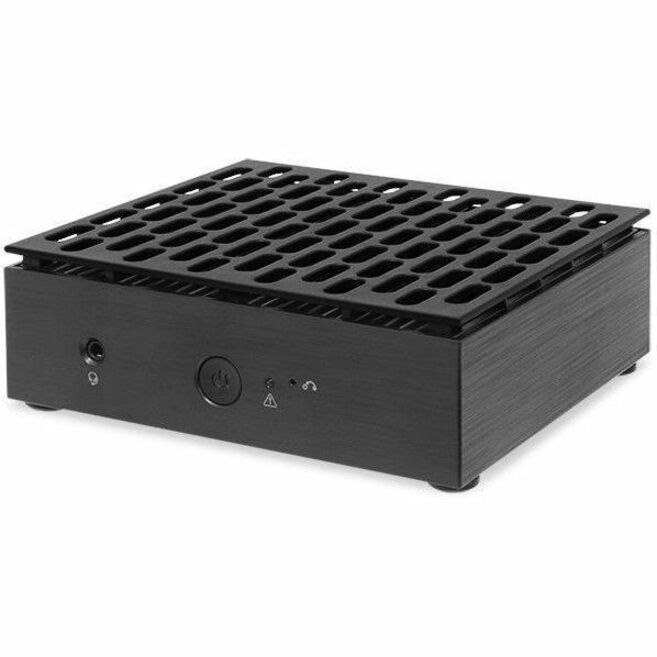

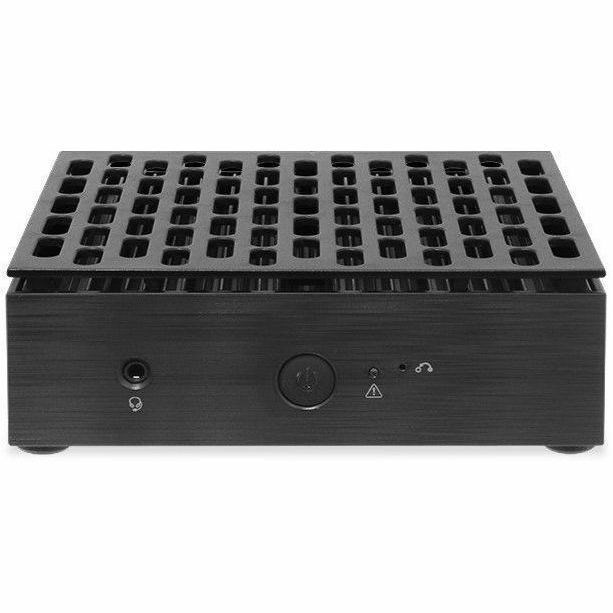

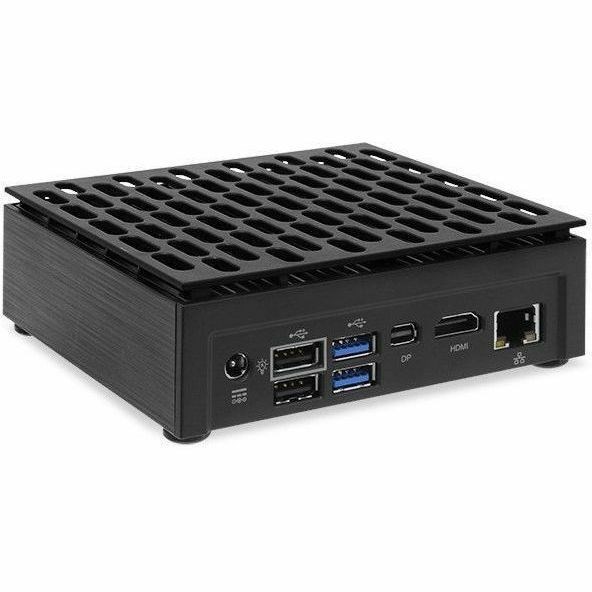

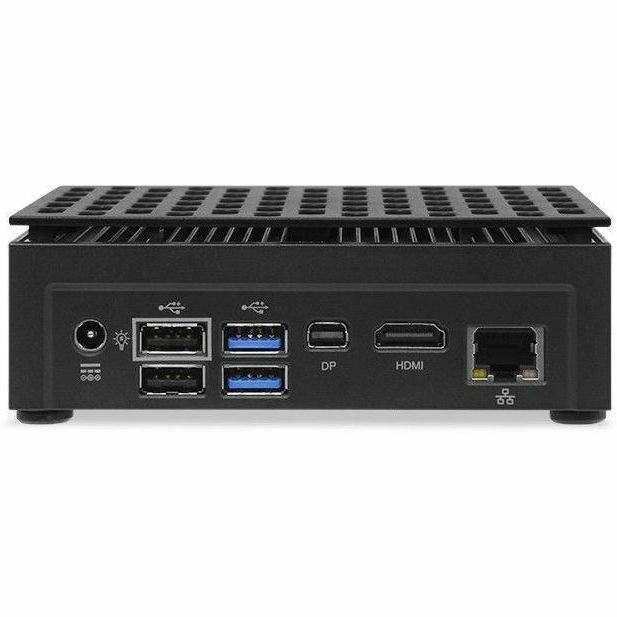

The AOPEN ACE series of digital signage media players are the next generation of Mini PC - designed for excellence across a broader range of applications, environments, and use cases. The AOPEN ACE series enables end users to select the right device from a single product line based on their unique requirements.
CHALLENGES
A persistent obstacle facing organizations looking to scale is the process of identifying appropriate devices to meet complex project requirements. Though some products may satisfy certain use cases, choosing a PC to deploy at scale is no simple task.
CHALLENGES
End-users find that reliability and affordability are on opposite ends of the spectrum. Finding that proper balance is a constant challenge that never has a resolution. Ideally, the lesser time thinking about their investment and focusing on the demands of their industry is a top priority.
SOLUTION
With design versatility, the AOPEN ACE Mini is a scalable-ready solution that addresses vital points and fits a wide range of applications. Scalable means high-quality, multiple platform compatibility at the right price point.
- General Information
- Manufacturer
- AOpen, Inc
- Manufacturer Website Address
- http://www.aopen.com
- Brand Name
- AOpen
- Product Line
- ACE Mini
- Product Type
- Digital Signage Appliance
- Warranty
- Limited Warranty
- 1 Year
- Processor & Chipset
- Processor Manufacturer
- Intel
- Processor Type
- Celeron
- Processor Model
- N6210
- Processor Speed
- 1.20 GHz
- Processor Core
- Dual-core (2 Core)
- Memory
- Standard Memory
- 1 GB
- Memory Technology
- DDR4 SDRAM
- Storage
- Solid State Drive Capacity
- 128 GB
- Display & Graphics
- Graphics Controller Manufacturer
- Intel
- Graphics Controller Model
- UHD Graphic for 10th Gen Processor
- Network & Communication
- Ethernet
- Yes
- Interfaces/Ports
- USB
- Yes
- HDMI
- Yes
- DisplayPort
- Yes
- Number of USB 2.0 Ports
- 2
- Number of DisplayPorts
- 1
- Number of Network (RJ-45) Ports
- 1
- Number of HDMI 2.0 Ports
- 1
- Power Description
- Input Voltage
- 120 V AC
- 230 V AC
- Environmental Conditions
- Minimum Operating Temperature
- 32°F (0°C)
- Maximum Operating Temperature
- 95°F (35°C)
- Minimum Storage Temperature
- -22°F (-30°C)
- Maximum Storage Temperature
- 140°F (60°C)
- Physical Characteristics
- Height
- 1.4"
- Width
- 4.9"
- Depth
- 4.3"
- Weight (Approximate)
- 1.17 lb
