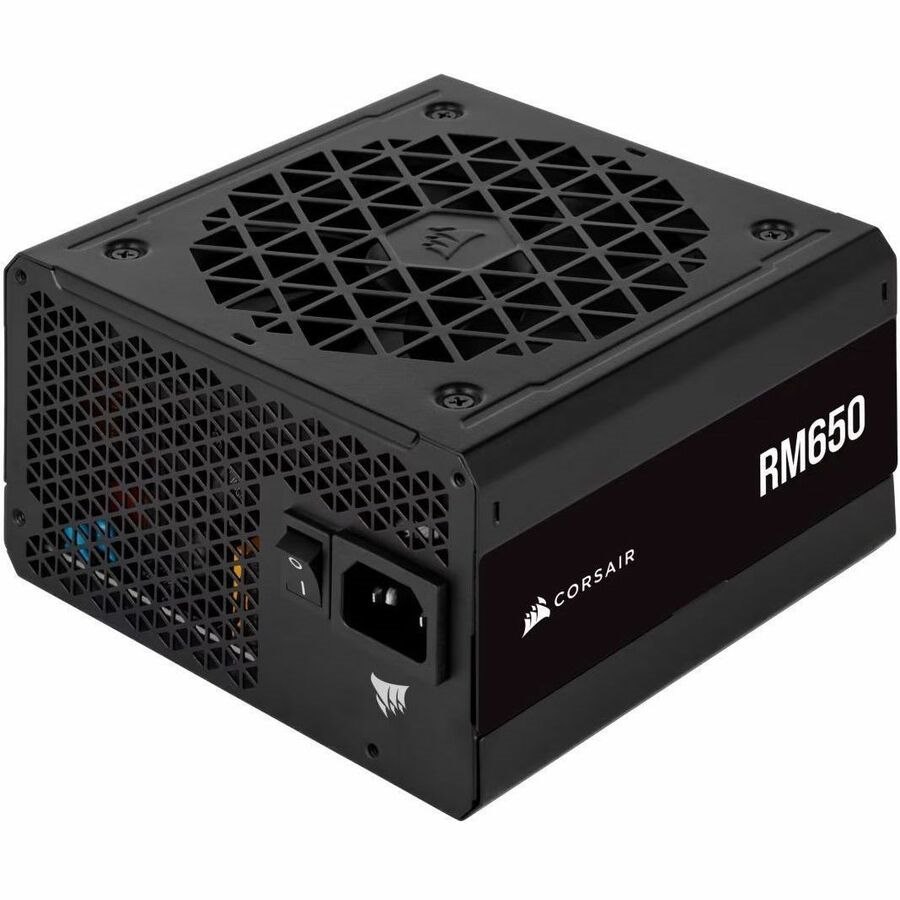

RM650 POWER SUPPLY | FULLY MODULAR LOW-NOISE ATX POWER SUPPLIES | STEADY POWER FOR YOUR SYSTEM | FULLY MODULAR?CABLING
Keep cable clutter down by connecting only the cables your system needs and nothing else. Four universal 8-pin connectors can be used with any 8-pin cable, satisfying all the power needs of modern motherboards and GPUs.
LOW NOISE OPERATION IN A COMPACT SIZE
A compact 140mm-long casing ensures an easy fit in modern enthusiast PC cases.
A 120mm rifle bearing fan with a specially calculated fan curve keeps fan noise down, even when operating at full load.
TECHNOLOGY AND RELIABILITY
For consistent, reliable power and superb electrical performance, each RM Series power supply features a robust resonant LLC topology with DC-DC conversion and 105° rated industrial-grade capacitors.
With precise timings, RM supports Modern Standby, ensuring extremely fast wake-from-sleep times and better low-load efficiency.
80 PLUS GOLD-CERTIFIED
Steady power output at up to 90% efficiency for lower power consumption, less noise, and cooler temperatures.
WORLD-CLASS SUPPORT
Our award-winning service means you can enjoy your gear worry-free.
- General Information
- Manufacturer
- Corsair
- Manufacturer Website Address
- http://www.corsair.com/us/
- Brand Name
- Corsair
- Product Series
- RM
- Product Type
- Power Supply
- Warranty
- Limited Warranty
- 7 Year
- Technical Information
- Specification Compliance
- ATX12V v2.53
- Efficiency
- 90%
- Number of Fans
- 1
- Fan Bearing Type
- Rifle Bearing
- Fan Diameter
- 120 mm
- Modular
- Yes
- Features
- Low Noise
- Compact
- Robust
- Reliability
- MTBF
- 100000 Hour
- Power Description
- Number of +12V Rails
- 1
- Input Voltage
- 120 V AC
- 230 V AC
- Output Voltage
- 3.3 V DC
- 5 V DC
- 12 V DC
- -12 V DC
- 5 V SB
- Output Voltage Detail
- 3.3 V DC @ 20 A
- 5 V DC @ 20 A
- 12 V DC @ 54 A
- -12 V DC @ 0.3 A
- 5 V SB @ 3 A
- Output Power
- 650 W
- Input Frequency
- 63Hz
- Interfaces/Ports
- Number of SATA Power Connectors
- 7
- PCI Express Connector
- Yes
- Number of (6+2 pin) PCI Express Power Connectors
- 2
- Number of (4+4 pin) CPU Power Connectors
- 2
- Physical Characteristics
- Form Factor
- Internal
- Miscellaneous
- Energy Efficiency Certification
- 80 Plus Gold
