- General Information
- Manufacturer
- DELL SOURCING - NEW
- Brand Name
- DELL SOURCING - NEW
- Product Type
- Docking Station
- Technical Information
- Connectivity Technology
- Wired
- Charging Capability
- Yes
- Device Supported
- Notebook
- Workstation
- Tablet PC
- Desktop PC
- Cable Length
- 2.62 ft
- Features
- Power Delivery Pass-through
- LED Power Indicator
- Management Features
- PXE Boot
- Wake-on-LAN
- MAC Address Pass-through
- Port Disablement
- Wake-on-Dock Button
- Dell Command Update (DCU)
- Number of Displays Supported
- 4
- Screen Mode Supported
- 8K @ 60Hz
- 5K @ 60Hz
- 4K @ 60Hz
- 4K @30Hz
- FHD @ 60Hz
- QHD @ 60Hz
- 4K
- Supported Resolutions
- 3840 x 2160
- 5120 x 2160
- 1920 x 1080
- 2560 x 1440
- Maximum Data Transfer Rate
- 5 GB/s
- Security Slot Type
- Kensington Security Slot
- Noble Wedge Security Slot
- Power Delivery Details
- Power Adapter 180 Watt AC with up to 130 Watt power delivery to Dell Commercial Notebooks
- Up to 90 Watts power delivery to non-Dell systems
- Power Delivery
- 130W (Dell Systems)
- 90W (non-Dell Systems)
- Video Resolution Details
- 4K - 60 Hz (Triple Display)
- 4K - 60 Hz (Dual Display)
- QHD - 60 Hz (Quad Display)
- FHD - 60 Hz (Triple Display)
- 4K - 30 Hz (Triple Display)
- FHD - 60 Hz (Quad Display)
- QHD - 60 Hz (Triple Display)
- Network & Communication
- Ethernet Technology
- Gigabit Ethernet
- Interfaces/Ports
- Host Interface
- Thunderbolt 4
- Total Number of USB Ports
- 5
- USB Type-A
- Yes
- Number of USB 3.2 Gen 1 Type-A Ports
- 3
- Number of USB Type-A Ports
- 3
- USB Type-C
- Yes
- USB Type-C Detail
- 2 x USB 3.2 Gen 2 (1 with DisplayPort 1.4 Alt Mode)
- Number of USB Type-C Ports
- 2
- Network (RJ-45)
- Yes
- DisplayPort
- Yes
- Number of DisplayPorts
- 2
- DisplayPort Version
- 1.4
- HDMI
- Yes
- HDMI Version
- 2
- Thunderbolt
- Yes
- Thunderbolt Ports Quantity
- 2
- Number of Thunderbolt 4 Ports
- 2
- Software
- Operating System Supported
- Windows 10
- Ubuntu 20.04
- Windows 11
- Power Description
- Maximum Power Supply Wattage
- 180 W
- Power Source Type
- Power Adapter
- Physical Characteristics
- Form Factor
- Desktop
- Height
- 8.07"
- Width
- 3.54"
- Depth
- 1.14"
- Weight (Approximate)
- 15.87 oz
- Miscellaneous
- Package Contents

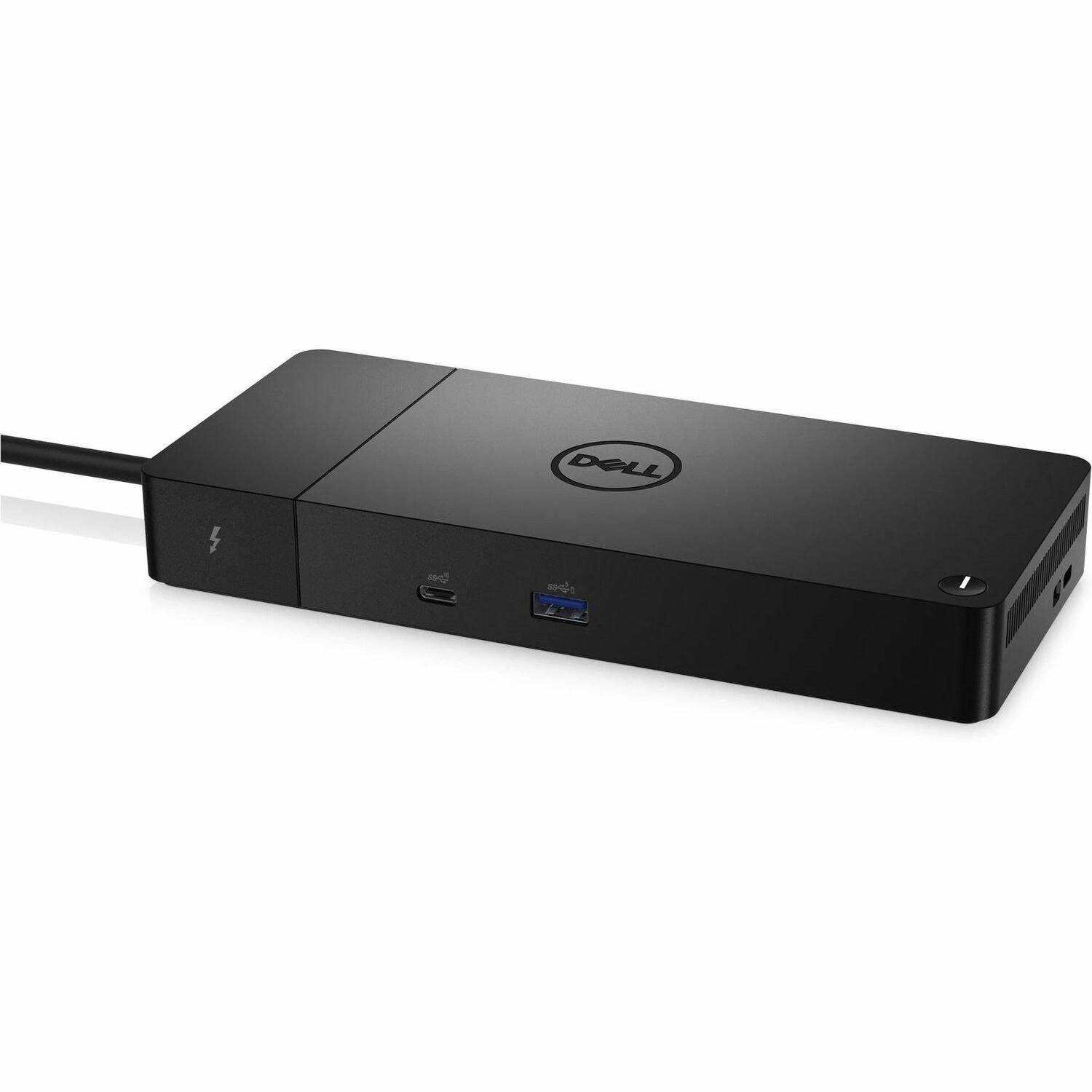

- WD22TB4 Docking Station
- 180W Power Adapter
- Documentation (Quick Start Guide, Safety, Environment and Regulatory information)
- Kensington Security Slot
- Yes
- Compatibility
Apple Mac devices
- Brand Compatibility
- Apple
