- General Information
- Manufacturer
- GIGABYTE Technology, Inc
- Manufacturer Website Address
- http://www.gigabyte.us
- Brand Name
- GIGABYTE
- Product Type
- Graphic Card

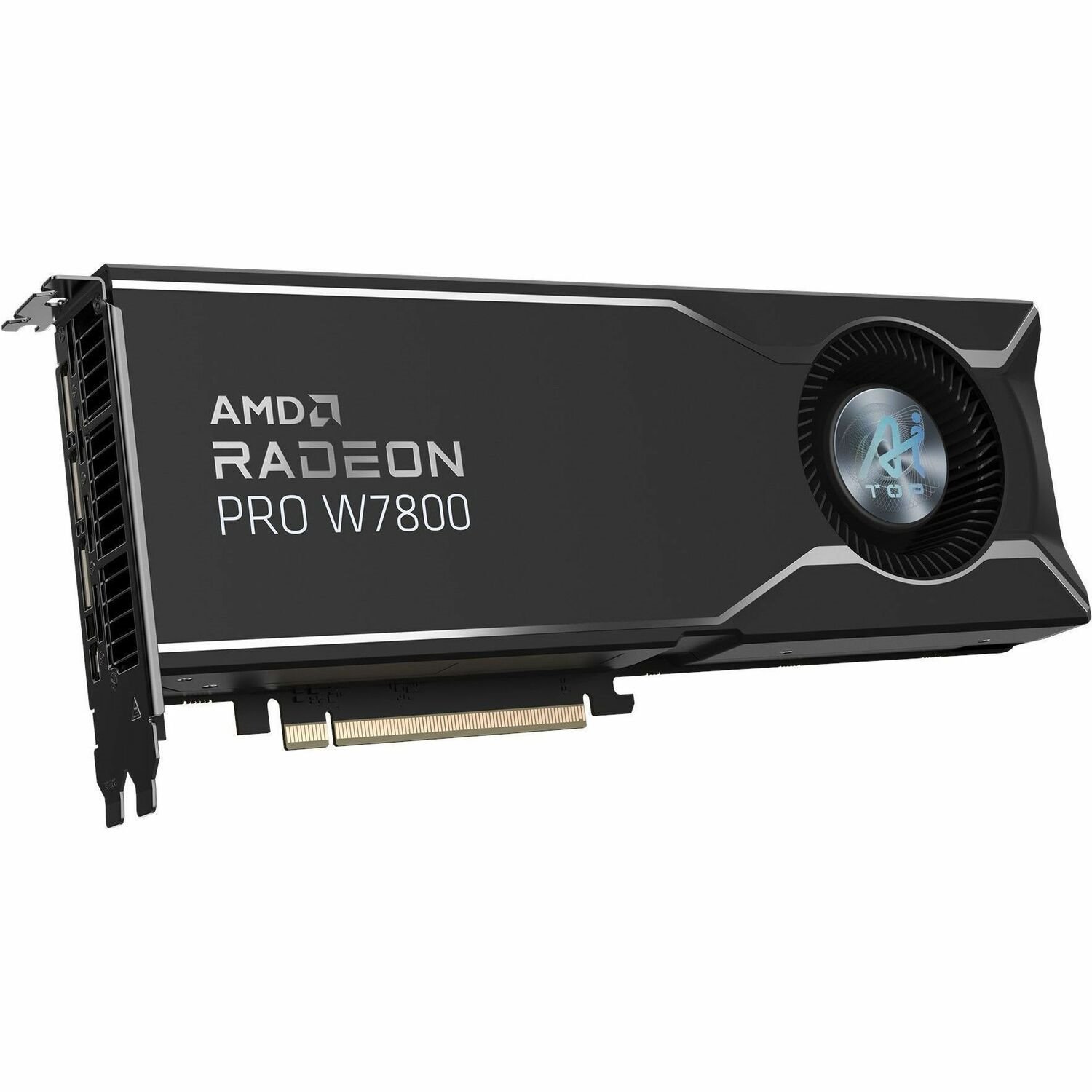

DESIGNED FOR AI COMPUTING
Professional-level graphics card : Crafted with premium-grade components, the graphics card delivers unparalleled stability and endurance, far surpassing consumer-grade offerings. Additionally, ECC memory's error correction technology effectively reduces AI training errors, ensuring precise and reliable training outcomes.
Massive 32GB VRAM : With support for up to four graphics cards, you can achieve a maximum memory capacity of 128GB, offering significant advantages for large AI model training.
Double Ball Bearing Fan : The most stable and durable fan structure, ideal for uninterrupted long-term operation.
Vertified by GIGABYTE AI Testing : The graphics card has passed GIGABYTE's high-quality verification and undergone specialized simulation tests for AI computing scenarios to ensure optimal performance during AI operations.
TURBO FAN COOLING SYSTEM
The TURBO fan cooling system is specifically designed and optimized for multiple graphics card installations. Its metal cover and blower fan design effectively dissipate waste heat directly out of the chassis. Additionally, the direct contact heat pipe and copper fins design further enhance heat dissipation efficiency.
All COPPER COOLING & METAL FRAME
The vapor chamber and copper heat sink have the advantage of high thermal conductivity, effectively transferring and dissipating heat generated by the GPU. The metal frame further dissipates heat from other critical components, enhancing overall cooling efficiency.
DOUBLE BALL BEARING
The dual ball bearing structure boasts superior heat resistance and rotational efficiency, offering better performance and a longer lifespan compared to conventional sleeve structure.
- Warranty
- Limited Warranty
- 3 Year
- Technical Information
- API Supported
- DirectX 12
- OpenGL 4.6
- Number of Monitors Supported
- 4
- Features
- ECC
- AV1 Encode/Decode
- H.265 (HEVC)
- H.264
- Maximum Digital Display Resolution
- 7680 x 4320
- AI-powered
- Yes
- Processor & Chipset
- Chipset Manufacturer
- AMD
- Chipset Line
- Radeon Pro
- Chipset Series
- W7000
- Chipset Model
- W7800
- Memory
- Standard Memory
- 32 GB
- Memory Technology
- GDDR6
- Bus Width
- 256 bit
- Maximum Memory Bandwidth
- 576 GB/s
- Interfaces/Ports
- Host Interface
- PCI Express 4.0 x16
- DisplayPort
- Yes
- Number of DisplayPort Outputs
- 3
- Mini DisplayPort
- Yes
- Number of Mini DisplayPort Outputs
- 1
- Power Description
- Power Supply Wattage
- 700 W
- Power Connector
- 2x 8-pin
- Physical Characteristics
- Slot Space Required
- Dual
- Form Factor
- Plug-in Card
- Cooler Type
- Fan Cooler
- Height
- 1.7"
- Width
- 5"
- Length
- 11.5"
- Weight (Approximate)
- 2.76 lb
- Miscellaneous
- Platform Supported
- PC
