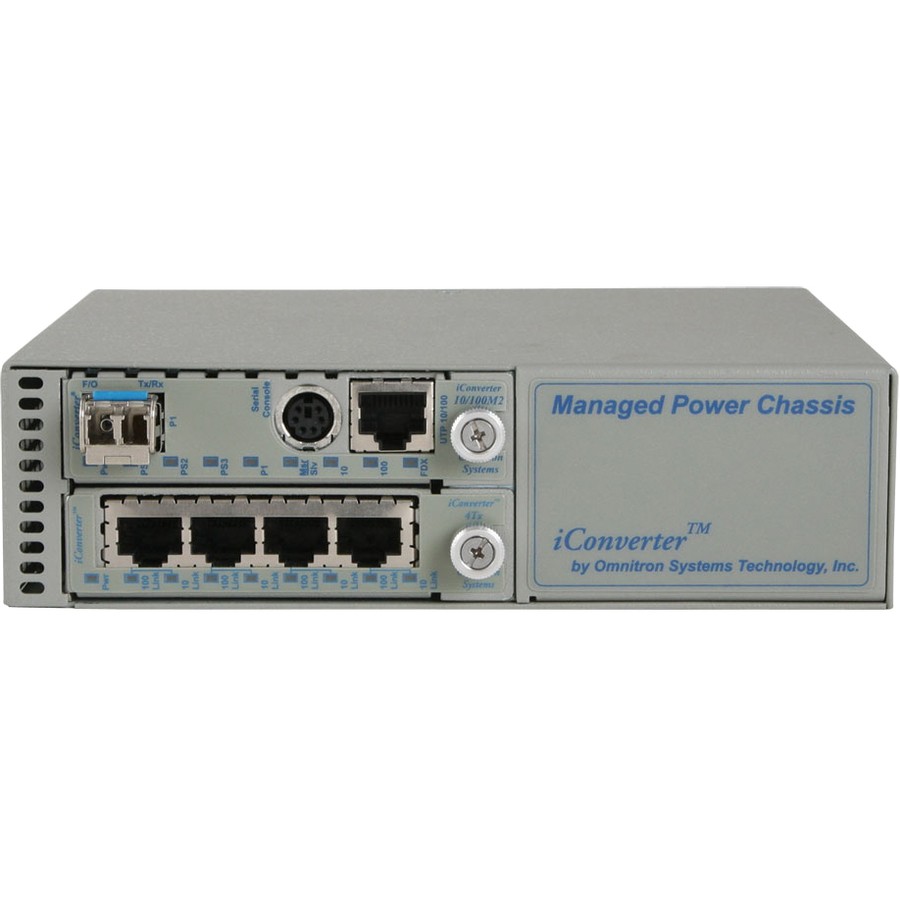

The iConverter 2-Module Power Chassis is a compact, versatile chassis featuring a single internal universal AC or 18-60VDC power supply. The chassis provides housing for all iConverter multi-service platform modules.
The 2-Module Chassis features a backplane that enables sharing of Ethernet data between two installed iConverter modules that are equipped with Ethernet backplane ports. This enables the chassis to support a variety of networking configurations. Installing an iConverter copper-to-fiber module and a four-port switch module provides a fiber uplink and five 10/100 user ports. A fiber-to-fiber module can be used to provide an access point in a fiber ring, supporting four 10/100 user ports.
- General Information
- Manufacturer
- Omnitron Systems
- Manufacturer Website Address
- http://www.omnitron-systems.com
- Brand Name
- Omnitron Systems
- Product Line
- iConverter
- Product Type
- Media Converter Chassis
- Warranty
- Limited Warranty
- Lifetime
- Physical Characteristics
- Height
- 1.9"
- Width
- 6.7"
- Depth
- 5.5"
- Weight (Approximate)
- 2.50 lb
- Miscellaneous
- Additional Information
- Power Supply: 16.5 Watts DC Supply
- Media Converter Slots: 2
- Support Dying Gasp Traps (Power Loss Traps)
Form Factor:
- Wall-Mountable
- Rack-Mountable
- Desktop
- Certifications & Standards
- UL
- CE
- FCC Class A
- NEBS Level 3
- Country of Origin
- United States
- Environmentally Friendly
- Yes
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
- Waste Electrical and Electronic Equipment Directive (WEEE)
