- General Information
- Manufacturer
- PANDUIT CORP
- Manufacturer Website Address
- http://www.panduit.com
- Brand Name
- Panduit
- Packaged Quantity
- 1 Piece
- Product Type
- PDU
- Warranty
- Limited Warranty
- 5 Year
- Technical Information
- PDU Type
- Switched Outlet Monitored
- Phase
- Three Phase
- Receptacle Type
- IEC 60320 C13/C15
- IEC 60320 C13/C15/C19/C21
- Receptacle Detail
- 18 x IEC 60320 C13/C15
- 18 x IEC 60320 C13/C15/C19/C21
- Features
- On/Off LED
- Onboard Display
- SNMP Compatible
- Power Description
- Output Voltage
- 240 V AC
- Power Rating (VA)
- 17.30 kVA
- Input Current
- 30 A
- Circuit Breaker
- Yes
- Number of Circuit Breakers
- 6
- Voltage Measurement Accuracy
- ±1%
- Power Measurement Accuracy
- ±1%
- Current Measurement Accuracy
- ±1%
- Interfaces/Ports
- Network Monitoring Port Detail
- Gigabit network port reduces labor by auto negotiating with data center level network switches
- Physical Characteristics
- Color Family
- Black
- Product Color
- Black
- Product Material
- Metal
- Finishing
- Powder Coated
- Mounting Orientation
- Vertical
- Mount Type
- Rack-mountable
- Rack Height
- 0U
- Cord Length
- 9.84 ft
- Height
- 70"
- Width
- 2"
- Depth
- 3"
- Environmental Conditions
- Minimum Operating Temperature
- 50°F (10°C)
- Maximum Operating Temperature
- 140°F (60°C)
- Minimum Storage Temperature
- -4°F (-20°C)
- Maximum Storage Temperature
- 140°F (60°C)
- Miscellaneous
- Package Contents

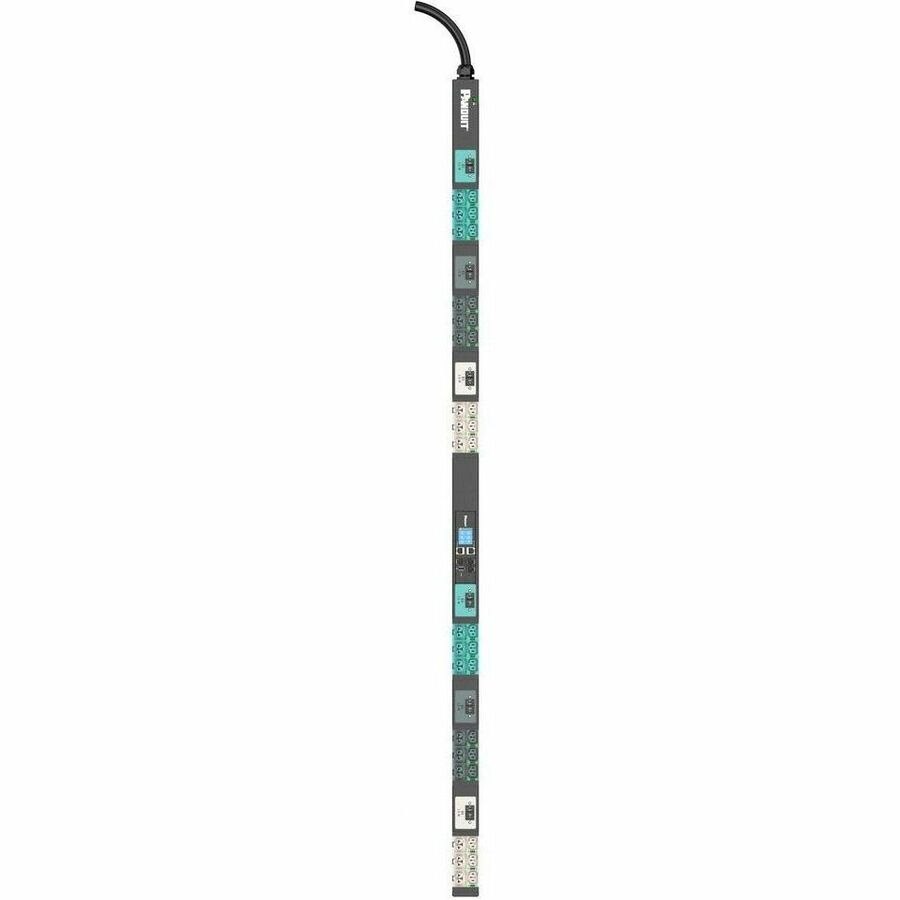

- EL2P MSPO PDU, 32/30 AMP, 3 PH , 36 OUTLETS
- Mounting Hardware
- Additional Information
- Front Panel Display:
Use display to set IP address, update firmware, quick configure, rotate display, balance loads across phases, view alarms, read current, voltage, power and energy on the device
Network Card:Panduit EL2P Dual Gigabit Network Module
Frequency Compatibility (Hz): 50/60
- Certifications & Standards
- CB & NRTL Certificate/Report
- CE
- UKCA
- Country of Origin
- Taiwan
- Environmentally Friendly
- Yes
- Environmental Certification
- RoHS
- REACH
- China RoHS
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
- Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
- China Restriction of Hazardous Substances (China RoHS)
